Installing flexible piping systems requires absolute precision. Structural integrity relies heavily on the soil-pipe envelope, not just the pipe material itself. You cannot simply bury these lines and hope for the best. Poor trenching, incorrect bedding, or miscalculated burial depths account for the majority of premature underground pipeline failures. These fundamental installation errors frequently lead to costly unearthing operations. They also cause severe operational downtime and dangerous environmental risks. We must address the engineering realities of subterranean environments before breaking ground on any project. This guide provides an evidence-based, decision-stage framework for evaluating reinforced thermoplastic pipe installation requirements. We will cover critical load distributions, rigorous backfill material standards, and verifiable depth parameters. Understanding these interacting forces helps engineers design highly resilient underground networks. Following these guidelines ensures long-term project viability and optimal system performance across harsh operational landscapes.
Soil-Pipe Synergy: Reinforced thermoplastic pipe acts as a flexible system; its structural rating is fundamentally tied to the quality and compaction of the surrounding backfill.
Minimum Depth Constraints: Minimum burial depths are dictated by dynamic live loads (e.g., AASHTO H-20/HS-20 traffic) and local frost lines, typically requiring 24 to 36 inches of cover.
Maximum Depth Limits: Maximum burial is governed by dead loads (soil weight and water tables), requiring precise stress analysis to prevent deflection limits from being exceeded.
Material Selection: Granular, non-cohesive materials (Class I or II) are universally preferred for the critical haunching and initial backfill zones to prevent point-loading.
Flexible pipe mechanics differ completely from rigid concrete or metallic systems. Rigid pipes carry structural loads directly through their thick, unyielding walls. They bear the entire weight of the earth above them independently. Conversely, an RTP pipe transfers overhead vertical loads into the surrounding soil. It relies heavily on side-soil support to resist vertical crushing forces. As earth presses down on the crown, the pipe sides try to expand outward. The compacted soil along the sides pushes back. This lateral resistance creates a balanced ring of support. Without adequate lateral restraint, flexible pipes will inevitably deform under pressure.
Success in buried installations depends entirely on managing pipe deflection. Deflection is the slight ovaling of the pipe diameter under external weight. Engineers define success by keeping this deflection strictly within the manufacturer's specified allowances. Manufacturers usually express these limits as a strict percentage of the nominal pipe diameter. A five percent deflection limit is common in municipal and industrial projects. Keeping stress and ovaling low preserves the pipeline's hydraulic performance. It also protects the internal lining from microscopic stress fractures over decades of use.
We must emphasize a core concept regarding subsurface engineering. You are never just evaluating the bare thermoplastic pipe. You are evaluating the composite soil envelope structure. The actual product consists of the pipe acting synchronously alongside its engineered backfill. If you fail to compact the soil properly, you instantly degrade the system's pressure ratings. The pipe alone cannot withstand severe overhead loads. It needs the surrounding earth to function as a structural partner.
We must avoid claiming these thermoplastic systems are indestructible. They are highly durable but inherently vulnerable during the active installation phase. Improper compaction or the wrong soil type immediately jeopardizes their structural integrity. Placing heavy rocks against the pipe wall creates severe point loads. These point loads can puncture or warp the material under soil pressure. Always treat the soil envelope as a critical, highly engineered load-bearing component.
Setting the correct burial depth requires analyzing distinct technical boundary conditions. You must balance dynamic surface forces against crushing subterranean pressures. Guesswork often leads to catastrophic structural failures. Engineers must calculate these depth limits using proven mathematical models and localized soil data.
Minimum burial depth protects the pipeline from dangerous live loads above. Surface traffic poses a major threat to shallow installations. Engineers calculate these dynamic impacts using AASHTO H-20 and HS-20 highway load standards. Heavy trucks compress the soil and transfer stress directly downward toward the pipe crown. Proper soil cover absorbs and dissipates this destructive energy. Pavement type significantly changes the minimum required cover. Rigid concrete roads distribute surface loads widely across a large footprint. This distribution often allows slightly shallower pipe placement. Flexible asphalt spreads loads less efficiently, demanding deeper burial depths for safety. You must also consider severe environmental factors. Placing pipes below the maximum frost penetration depth remains crucial. Frost heave acts as a powerful, unpredictable upward force in freezing climates. It can easily misalign joints, warp the pipe wall, and destroy the surrounding bedding.
Maximum burial depth is governed entirely by continuous dead loads. These dead loads include the massive, unchanging weight of the soil prism above. Deep trenches place thousands of pounds of static pressure on the pipe structure. Groundwater hydrostatic pressure also squeezes the pipeline continuously from all sides. Soil density variations dictate exactly how heavy this overhead prism becomes. Wet clay weighs significantly more than dry sand. Engineers predict deep-fill deflection using established calculation models. Spangler’s Iowa Formula remains a cornerstone framework for these critical predictions. It factors in soil stiffness, load weights, and pipe flexibility. Certain AWWA manual guidelines also help quantify expected deformation limits. Deep installations leave absolutely zero margin for estimation errors.
Project managers must demand total data transparency from their product suppliers. Instruct your engineering teams to request project-specific depth-load tables. Never rely on generic, rule-of-thumb depth charts found randomly online. Each job site features unique soil densities, water tables, and traffic patterns. You need calculations based on your specific geotechnical soil report.
Depth Category | Primary Load Type | Key Influencing Factors | Governing Engineering Limit |
|---|---|---|---|
Minimum Depth | Live Loads (Dynamic) | Traffic (AASHTO H-20), Frost Line Depth, Road Pavement Type | Requires 24-36 inches of well-compacted cover to prevent crushing and heave. |
Maximum Depth | Dead Loads (Static) | Soil Prism Weight, Hydrostatic Pressure, Wet Soil Density | Requires structural deflection analysis (Spangler’s Formula) to prevent collapse. |
Selecting the right backfill directly influences the pipeline's operational lifespan. You must align your material choices closely with USBR and ASTM standards. Poor material selection guarantees premature pipeline failure. The soil must provide uniform support without introducing damaging friction or point loads.
The foundation and bedding provide a stable, level trench bottom. You cannot place the thermoplastic pipe directly onto jagged rocks or uneven ground. If the excavation uncovers rocky terrain, you must over-excavate the trench bottom. You then backfill the excavated bottom using compliant, soft bedding material. This crucial step prevents severe point-loading on the bottom curvature. A smooth, even foundation ensures uniform stress distribution along the entire pipeline length.

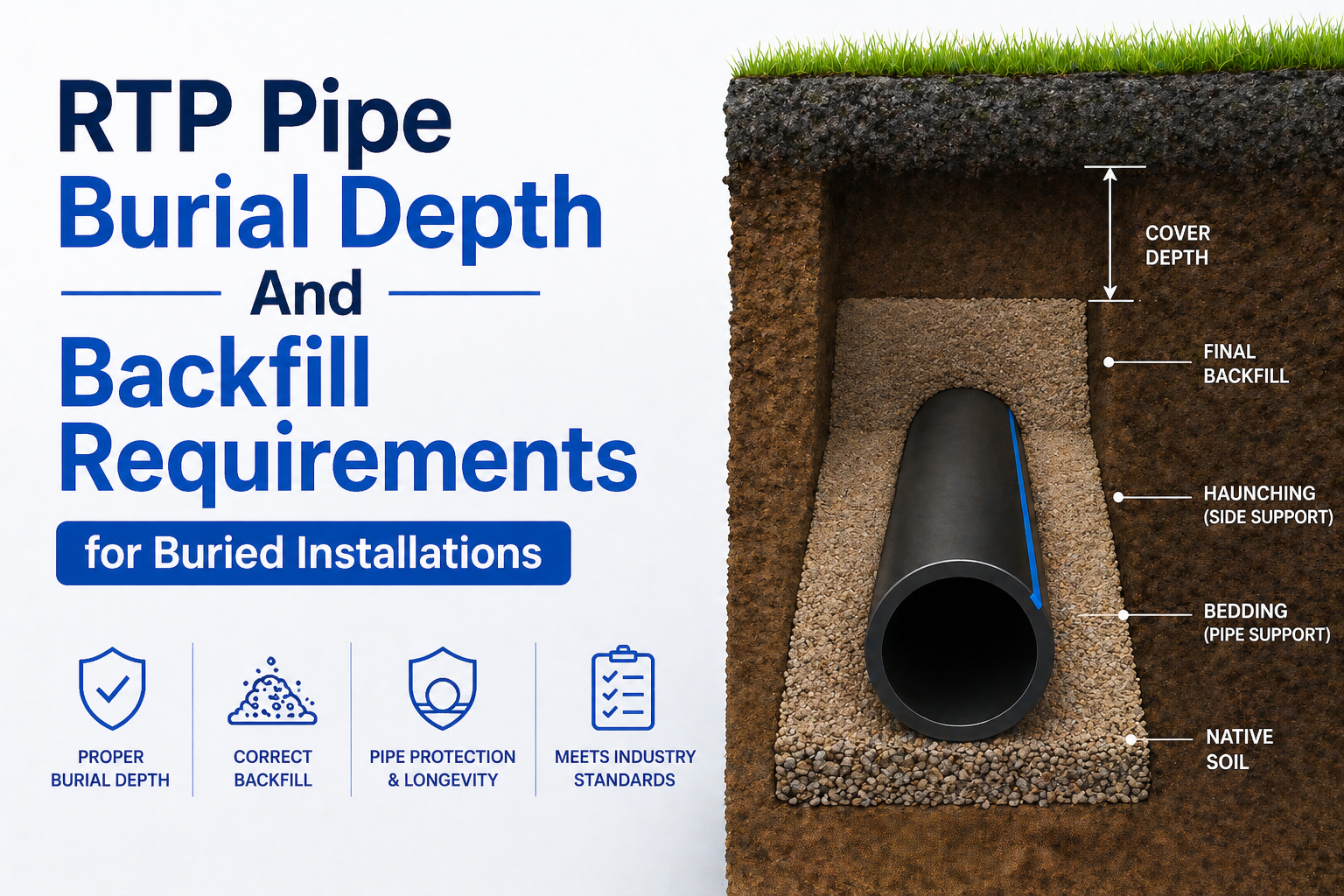

The haunching zone is the most critical area for structural support. This zone covers the lower half of the pipe's curved exterior. Installers must carefully and manually work material under this specific curvature. Leaving empty voids in the haunching zone guarantees future pipe deflection. Without haunch support, the weight pushes the pipe downward into the void. The soil here must lock the pipe securely and symmetrically in place.
Standardized soil classifications guide your backfill selection process. We categorize these soils based on structural stiffness, moisture response, and compaction behavior.
Class I & II (Recommended): These premium materials include crushed stone, gravel, and clean sand. They offer incredibly high structural support. Workers can easily compact them into tight spaces around the pipe. They do not hold excessive water.
Class III (Conditional): These consist of silty or moderately clayey sands. You can use them conditionally under strict supervision. They require precise moisture control to achieve proper density. They also demand much heavier, time-consuming compaction efforts from your crews.
Class IV & V (Avoid completely): These unstable materials include highly cohesive clays and organic soils. They offer highly unpredictable settlement patterns. They swell when wet and shrink when dry. Never use these materials in the primary structural support zones.
You must clearly differentiate initial backfill from final backfill. The initial backfill acts as the primary protective zone. It completely wraps the immediate surroundings of the thermoplastic line. It strictly requires imported, high-grade materials like Class I or II. The final backfill sits above this protective zone. It extends upward from the initial backfill to the surface grade. You can often safely utilize native excavated soils for this upper section. Ensure the native soil contains no massive boulders or frozen clumps.
Field execution risks often derail perfectly engineered plans. Real-world installation demands practical trenching experience and rigorous contractor oversight. A flawless design means nothing if the field crew rushes the backfill process. You must mitigate these physical risks through strict site protocols.
Trench width economics dictate major budgetary and structural outcomes. Digging a wide trench gives workers ample physical room to operate. They can safely maneuver heavy compaction equipment around the pipe sides. They can properly tamp the crucial haunching zones. However, overly wide trenches increase excavation costs drastically. Wider trenches also increase the total earth load resting heavily on the pipe crown. You must strategically balance adequate compaction space against these rising dead loads. Narrow trenches save money but often result in sloppy, inadequate side-fill compaction.
Compaction equipment selection requires careful daily attention. You must warn your field crews against using heavy vibratory rollers too early. Operating these powerful machines directly over a shallow pipe causes immediate structural damage. The intense vibration can crack the pipe or warp its manufactured shape. Wait until you achieve sufficient vertical cover before utilizing heavy machinery. You typically need at least 12 to 18 inches of initial backfill first. Use smaller, hand-held pneumatic tampers for the highly sensitive side zones.
Trench box hazards represent a very common, yet destructive, field error. Worker safety often requires heavy steel trench shields in deep excavations. Crews frequently drag these massive shields along the trench as work progresses. Dragging them forcibly over the installed pipe disrupts the carefully compacted bedding. This severe friction also scrapes and damages the outer pipe wall. The dragging motion leaves dangerous voids in the side-soil support. You must mandate that excavators lift and move trench boxes sequentially. Never pull them forcibly through the prepared soil envelope.
Groundwater management ensures your soil density remains stable during installation. Trench flooding creates a disastrous muddy environment for backfilling. You cannot physically achieve proper soil density in standing water. Compacting mud only creates a weak, unstable slurry. Dewatering is absolutely necessary before laying the bedding material down. Active dewatering keeps the structural support zones intact.
Establish precise trench width parameters before the first excavator arrives.
Mandate the use of hand-held tampers specifically for the critical haunching zones.
Restrict heavy vibratory equipment until a minimum of 12 inches of cover exists.
Train equipment operators to strictly lift, rather than drag, trench protection boxes.
Deploy active dewatering systems like well points if the local water table is high.
Selecting the right vendor is just as critical as executing proper soil compaction. You need manufacturing partners who back their products with robust, transparent engineering data. A trustworthy vendor removes guesswork from the installation process. They provide localized, actionable intelligence for your specific job site.
Credible manufacturers must adhere to strict standard verification processes. Look for direct alignment with prominent industry standards like API 15S. Some municipal or industrial applications also align with ASTM F2648 equivalents. Specific ISO norms often govern the pressure ratings of these composite structures. Ask for clear documentation proving they meet these rigorous third-party benchmarks. Untested or vaguely certified products introduce massive liabilities into your infrastructure projects. Always verify the testing methodology behind their published depth charts.
Technical support serves as a major vendor differentiator. Advise your purchasing teams to evaluate vendors strictly on proactive engineering support. Will they provide site-specific stress analyses? Do they calculate minimum burial depths based on your localized geotechnical soil reports? The best manufacturers offer comprehensive field-installation training for your crews. They do not just ship miles of pipe and walk away. They assign engineers to ensure the first few joints are bedded perfectly.
Warranty and liability alignment demands very close contractual scrutiny. Using unapproved backfill materials can easily void comprehensive manufacturer warranties. If you substitute required Class I stone with cheap native clay, you assume all risk. You must rigidly follow the manufacturer's published installation guides. Their financial warranty protects your project only if you follow their specific soil requirements. A structural failure caused by poor compaction will never trigger a successful warranty claim.
Your shortlisting next steps should focus heavily on verifiable technical data. Recommend initiating a small pilot evaluation for highly complex or large-scale projects. Alternatively, demand a detailed "Technical Bulletin" outlining precise burial guidelines. Ensure these guidelines map directly to your project's unique soil density metrics. If a vendor hesitates to provide this data, immediately look elsewhere. Superior vendors welcome technical scrutiny.
Deploying a highly reliable pipeline requires both superior manufacturing and strictly disciplined trench execution. The most robust pipe will still fail catastrophically if installed inside poorly compacted soil. Proper burial depth and high-grade backfill are never just loose industry recommendations. They remain the absolute structural foundation of your pipeline's entire operational lifecycle. Precision during the backfill phase prevents catastrophic leaks, ovaling, and deformations decades later. You must prioritize rigorous soil analysis and strict adherence to established load-bearing depth limits.
We strongly encourage you to consult with your internal engineering team directly. Have them review all localized geotechnical data before selecting trench materials. You should then contact dedicated technical sales engineers for a site-specific burial depth assessment. Establish a thorough, documented material compatibility review before you commence any excavation. Connect with experts regarding your reinforced thermoplastic pipe requirements to finalize a resilient, fully compliant installation framework.
A: Yes, but typically only for the final backfill zone. It must remain free of large rocks, dangerous debris, and frozen clumps. The critical initial backfill and bedding zones usually require imported, graded materials like Class I or II. These specific granular materials guarantee predictable compaction and vital structural side support.
A: Groundwater significantly increases the risk of pipe flotation if the line runs empty. It also drastically reduces the supporting frictional strength of the surrounding soil. High water tables may require deeper burial depths or heavier product wall thicknesses. You might also need specialized anti-flotation concrete anchoring and specific heavy crushed-stone backfill.
A: Several variables exist regarding dynamic surface loads and pavement types. However, unpaved areas subjected to standard H-20 or HS-20 traffic typically require a minimum of 24 to 36 inches of well-compacted cover. This precise depth properly distributes the dynamic load. It effectively prevents dangerous pipe deformation and preserves long-term structural integrity.
A: Yes. Because thermoplastic is entirely non-metallic, standard electromagnetic locating equipment cannot detect it underground. Industry best practice mandates installing a continuous metallic tracer wire alongside it. You must also place brightly colored warning tape in the trench above the pipe. This critical step prevents accidental third-party damage during future excavation work.
