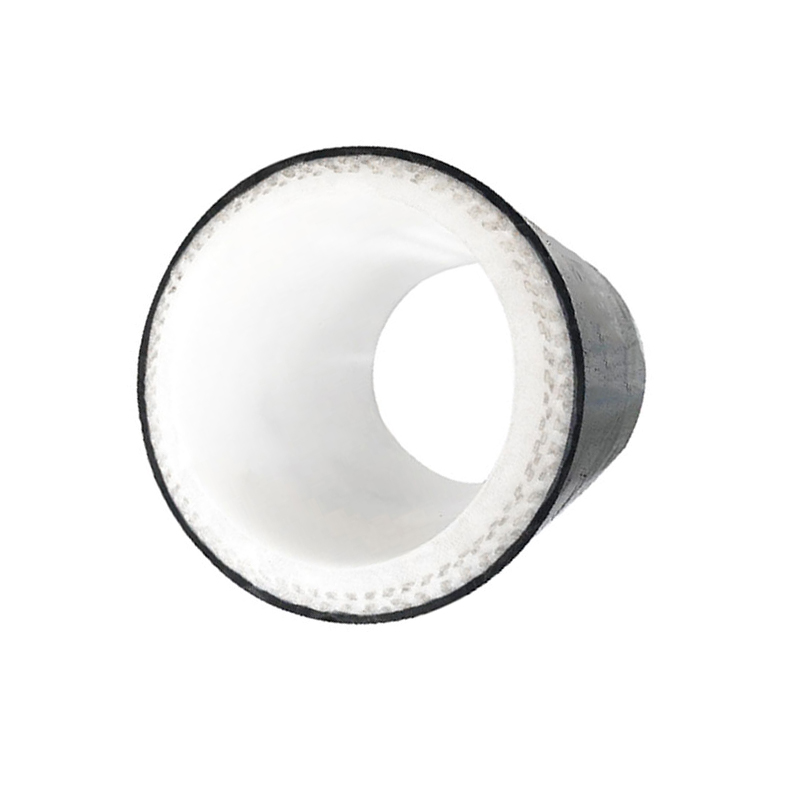

Product Advantage
Liner Layer: PE100, PE-RT II, PE-X, PA, etc.
Reinforcement Layer: Polyester fiber tape.
Outer Protective Layer: White UV-stabilized or other colored HDPE/PE-RT II, etc.
Technical Parameters
| Polyester Fiber Tape-Reinforced RTP | ||||||||||
| Nominal Diameter | Inner Diameter (ID) | Nominal Pressure | Outer Diameter (OD) | Weight per Meter | Reel Specification | Single Length | Reel Weight | Total Weight (with Reel) | Minimum Bending Radius | |
| inch | mm | psi | MPa | mm | kg/m | mm | m | kg | kg | mm |
| 2" | 50 | 3500 | 24 | 92 | 4.05 | 2500*2000 | 720 | 1200 | 4200 | 1250 |
| 50 | 3000 | 20 | 83 | 3.0 | 2500*2000 | 880 | 1200 | 3850 | 1250 | |
| 50 | 2500 | 17.5 | 76 | 2.5 | 2500*2000 | 1050 | 1200 | 3800 | 1250 | |
| 50 | 1500 | 10.5 | 73 | 2.2 | 2500*2000 | 1140 | 1200 | 3700 | 1250 | |
| 50 | 1000 | 7 | 72 | 2.05 | 2500*2000 | 1170 | 1200 | 3600 | 1250 | |
| 50 | 750 | 5 | 71 | 1.75 | 2500*2000 | 1200 | 1200 | 3300 | 1250 | |
| 50 | 500 | 3.5 | 69 | 1.55 | 2500*2000 | 1270 | 1200 | 3200 | 1250 | |
| 3" | 75 | 3000 | 20 | 113 | 5.8 | 3200*2800 | 900 | 1400 | 6600 | 2000 |
| 75 | 2500 | 17.5 | 110 | 4.9 | 3200*2800 | 950 | 1400 | 6100 | 2000 | |
| 75 | 1500 | 10.5 | 107 | 3.8 | 3200*2800 | 1000 | 1400 | 5200 | 2000 | |
| 75 | 1000 | 7 | 104 | 3.6 | 3200*2800 | 1000 | 1400 | 5000 | 2000 | |
| 75 | 750 | 5.2 | 102 | 3.1 | 3200*2800 | 1100 | 1400 | 4850 | 2000 | |
| 75 | 500 | 3.5 | 100 | 2.9 | 3200*2800 | 1100 | 1400 | 4600 | 2000 | |
| 4" | 100 | 1500 | 10.5 | 146.5 | 7.10 | 3750*2800 | 700 | 1700 | 6700 | 2500 |
| 100 | 1000 | 7 | 138.1 | 5.70 | 3750*2800 | 700 | 1700 | 5700 | 2500 | |
| 100 | 750 | 5.2 | 131.4 | 4.95 | 3750*2800 | 800 | 1700 | 5700 | 2500 | |
| 100 | 500 | 3.5 | 129.2 | 4.70 | 3750*2800 | 800 | 1700 | 5500 | 2500 | |
| 5" | 125 | 1000 | 7 | 160.4 | 8.60 | 3750*2800 | 600 | 1700 | 6900 | 3200 |
| 125 | 750 | 5.2 | 157.2 | 7.65 | 3750*2800 | 600 | 1700 | 6300 | 3200 | |
| 125 | 500 | 3.5 | 154.2 | 6.65 | 3750*2800 | 600 | 1700 | 5700 | 3200 | |
| 6" | 150 | 1000 | 7 | 193 | 11.5 | 3750*2800 | 300 | 1700 | 5150 | 3800 |
| 150 | 750 | 5.2 | 187 | 9.4 | 3750*2800 | 300 | 1700 | 4520 | 3800 | |
| 150 | 500 | 3.5 | 185 | 8.7 | 3750*2800 | 300 | 1700 | 4310 | 3800 | |
| 8" | 200 | 750 | 5.2 | 235 | 14.4 | 4200*2800 | 180 | 2000 | 4600 | 5000 |
| 200 | 500 | 3.5 | 233 | 13.3 | 4200*2800 | 180 | 2000 | 4400 | 5000 | |
Application Scope
Suitable for oil and gas fields, energy, mining, chemical industries, and other sectors, transporting media including multiphase fluids, gaseous hydrocarbons, liquid hydrocarbons, chemicals, non-potable water, slurry, fly ash, brine, and more.
Installation Methods: Buried below frost layer or surface-laid.
