Why settle for off-the-shelf when your pipeline performance demands precision? In today's rapidly evolving industrial landscape, customization isn't just a luxury—it's a necessity. Whether you're transporting high-pressure hydrocarbons, corrosive chemicals, or abrasive slurry, the ability to tailor your glass fiber tape RTP (Reinforced Thermoplastic Pipe) to meet specific environmental and operational challenges can dramatically enhance safety, efficiency, and cost-effectiveness.
The traditional pipeline industry is undergoing a transformation. With the rise of non-metallic composite piping systems, especially glass fiber tape RTP, companies no longer have to compromise between performance and flexibility.
In this post, you'll learn how customization of glass fiber tape RTP enables you to optimize your pipeline systems for unique applications. We'll explore which components can be customized, how these changes affect performance, and why Unitedpipe is the ideal partner for tailor-made RTP solutions.
Customized glass fiber tape RTP offers a performance-driven, cost-efficient solution for industries requiring pressure-resilient, corrosion-resistant, and long-lifespan pipelines. Through modifications in fiber type, reinforcement structure, tape dimensions, and material compatibility, RTPs can be engineered to meet aggressive operating environments—giving you pipeline solutions that are not only robust but also future-proof.

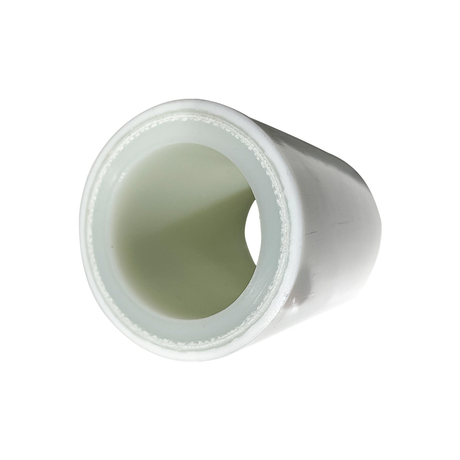

Glass fiber tape RTP is a high-performance composite pipe consisting of three main layers:
| Layer | Material Options | Function |
|---|---|---|
| Liner Layer | PE100, PE-RT II, PE-X, PA, PPS, PVDF | Ensures fluid compatibility and leak-proof transport. |
| Reinforcement Layer | Glass fiber tape | Provides mechanical strength and pressure resistance. |
| Outer Jacket | UV-stabilized HDPE or PE-RT II | Protects against external damage, UV exposure, corrosion. |
Glass fiber offers high tensile strength, low elongation, and excellent chemical resistance. When integrated into thermoplastic pipes, it significantly improves burst pressure and mechanical stability without adding the cost and weight of steel reinforcement. Compared to aramid or polyester tape RTP, glass fiber tape RTP provides a balanced solution for mid-to-high pressure applications at a competitive price.
Customization is the cornerstone of performance optimization in glass fiber tape RTP. Below are the components and parameters that can be tailored to your application.
Choosing the right type of glass fiber can dramatically influence pipe strength and flexibility.
E-glass fibers: Cost-effective and suitable for general environments.
S-glass fibers: Higher tensile strength and thermal stability.
Orientation also plays a critical role:
Unidirectional winding: For high axial strength.
Cross-winding (±55°): For improved hoop stress distribution and burst resistance.
Pro Tip: For high-pressure gas applications, cross-wound S-glass tape enhances both hoop strength and fatigue resistance.
Each additional glass fiber tape layer increases the pipe's pressure rating and stiffness.
| Layers | Pressure Class (MPa) | Flexibility | Cost |
|---|---|---|---|
| 1 Layer | 3.5 – 7 MPa | High | Low |
| 2 Layers | 10.5 – 17.5 MPa | Medium | Moderate |
| 3+ Layers | Up to 24 MPa | Low | Higher |
Unitedpipe offers RTPs with rated pressures from 3.5 MPa to 24 MPa and diameters up to 200 mm (8 inches)—see our product page for full specifications.
Tape geometry affects winding density, layer adhesion, and mechanical strength.
Wider tapes reduce winding cycles and improve production efficiency.
Thicker tapes boost tensile strength but increase pipe weight.
| Tape Width | Typical Range | Application |
|---|---|---|
| 25–50 mm | Standard | Water, slurry |
| 50–75 mm | High stress | Oil & gas pipelines |
Glass fiber must be compatible with the resin matrix of the liner to ensure bonding and structural integrity.
Common liner options:
PE100: For standard applications.
PE-RT II / PE-X: For higher temperature resistance.
PVDF / PPS / PA: For corrosive or high-temperature service.
At Unitedpipe, we ensure full compatibility between glass fiber tape and the liner and jacket resins, using heat-fusion processes to achieve high interlayer bonding.
Customization can be made for:
High temperature (up to 90–110°C)
Corrosive media (acids, brine, hydrocarbons)
UV exposure (UV-stabilized outer jackets)
Buried or above-ground installation
These adaptations are critical for industries like oil & gas, chemical processing, and mining.
Why go custom? Because glass fiber tape RTP is not a one-size-fits-all solution. Tailoring your pipeline ensures:
Higher Safety Margins
Adapt pressure ratings to exceed operational needs.
Extended Service Life
Match material compatibility with transported media.
Improved Performance-to-Cost Ratio
Avoid overengineering and reduce material waste.
Faster Installation
Lighter weight and longer coil lengths (up to 1,100 meters) reduce jointing.
Regulatory Compliance
Meet API 15S, ISO 14692, and other international standards.
| Industry | Application | Customization Focus |
|---|---|---|
| Oil & Gas | Flowlines, water injection, produced water | Pressure rating, chemical resistance |
| Mining | Slurry and tailings transport | Abrasion resistance, stiffness |
| Chemical Industry | Acid and solvent pipelines | Resin compatibility |
| Municipal Engineering | Water transfer, desalination | UV, corrosion resistance |
| Renewable Energy | Hydrogen / CO₂ transport | High-pressure, gas-tight sealing |
Unitedpipe's glass fiber tape RTP is engineered for reliability under extreme conditions.
At Unitedpipe, we take a collaborative approach to your pipeline challenges.
Needs Analysis
We start by understanding your pressure, temperature, and chemical requirements.
Material Selection
Choose from PE100, PE-RT II, PA, PVDF, S-glass or E-glass, and more.
Design Engineering
Finite Element Analysis (FEA), winding angle optimization.
Prototyping & Testing
Full-scale hydrostatic and burst pressure tests.
Production & Delivery
Long-length reels (up to 1,100m) for reduced field joints.
After-Sales Support
On-site installation guidance, training, and maintenance support.
Our CNAS-certified lab ensures every batch meets international standards.
Customized glass fiber tape RTP is redefining pipeline engineering. Whether you're operating in a corrosive chemical plant or drilling in a remote desert oilfield, having a pipe that meets your exact requirements means better performance, fewer failures, and higher ROI.
With Unitedpipe's advanced manufacturing capabilities, expert engineers, and commitment to quality, you can be confident that your customized RTP will exceed expectations.
Ready to customize your pipeline? Contact our team today for a free technical consultation.
Yes, our glass fiber tape RTP can be customized up to 24 MPa, depending on the number of reinforcement layers and fiber type.
We offer up to 1,100 meters per reel, depending on diameter and pressure class.
Yes, it's ideal for both buried and above-ground installations.
Yes, we ship globally and provide engineering support upon request.
Glass fiber is lighter, corrosion-resistant, and cost-effective for mid-pressure applications. Steel wire offers higher pressure tolerance but at a higher cost and weight.
