Discover Reinforced Thermoplastic Pipes From Unitedpipe

Liner Layer: PE100, PE-RT II, PE-X, PA, etc.
Reinforcement Layer: Polyester fiber tape.
Outer Protective Layer: White UV-stabilized or other colored HDPE/PE-RT II, etc.

Liner Layer: PE100, PE-RT II, PE-X, PA, etc.
Reinforcement Layer: High-strength steel wire (rope) tape.
Outer Protective Layer: White UV-stabilized or other colored HDPE/PE-RT II, etc.

Liner Layer: PE100, PE-RT II, PE-X, PA, PPS, PVDF, etc.
Reinforcement Layer: Aramid fiber tape.
Outer Protective Layer: White UV-stabilized or other colored HDPE/PE-RT II, etc.

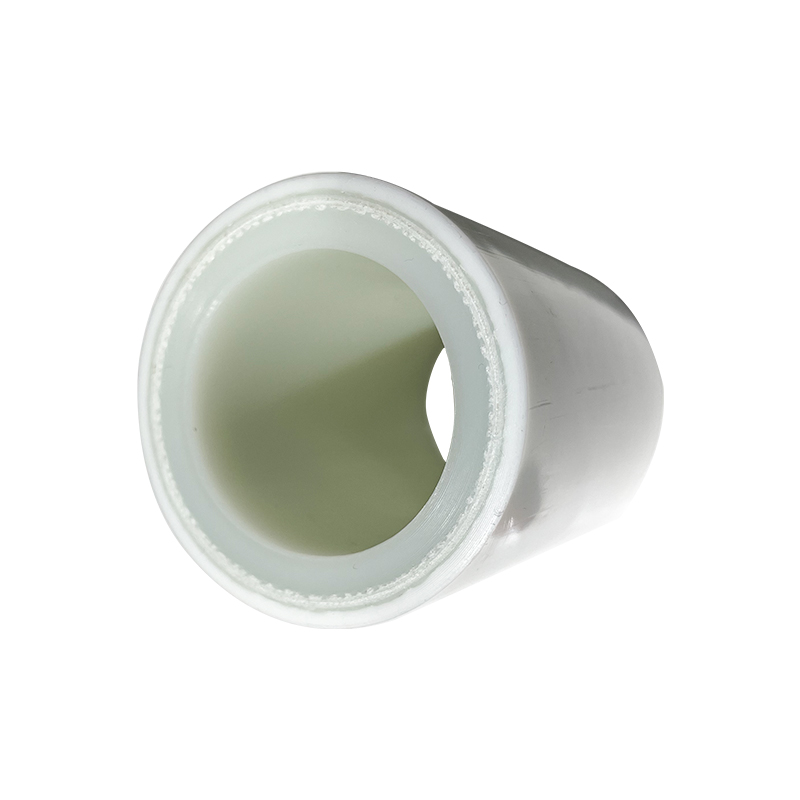

Liner Layer: PE100, PE-RT II, PE-X, PA, PPS, PVDF, etc.
Reinforcement Layer: Glass fiber tape.
Outer Protective Layer: White UV-stabilized or other colored HDPE/PE-RT II, etc.

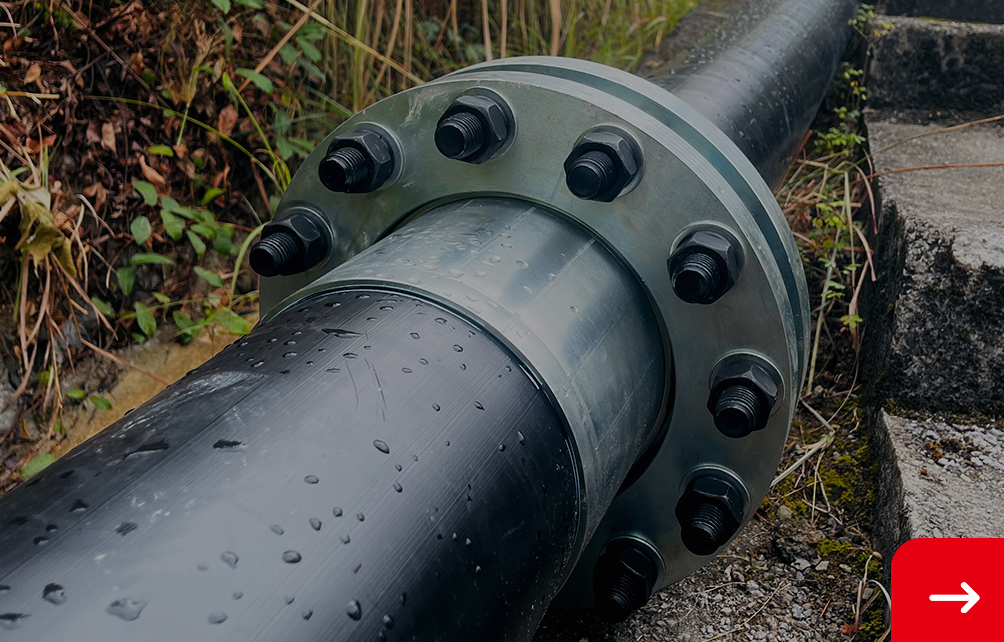

This composite pipe consists of a polyolefin wear-resistant material extruded with polyethylene as the base matrix. The reinforcement framework is formed by combining steel fibers or steel cord tapes with adhesive resin or polyethylene, which are continuously spiral-wound at a specific angle. During winding, heat is applied to bond the reinforcement layer.

The inner pipe material, extruded with polyolefin wear-resistant material and polyethylene, provides exceptional wear resistance. As a bonded-type pipe, it features a stable composite structure with uniform stress distribution and high load-bearing capacity, delivering superior performance in high-pressure resistance, high-temperature resistance, low expansion, and creep resistance. This product is primarily designed for long-distance slurry transport, coal slurry transport in power plants, tailings slurry transport, and solid-liquid two-phase transport applications.
